DeltaQuad Pro #Map

VTOL mapping UAV for Agriculture, Mapping and Construction

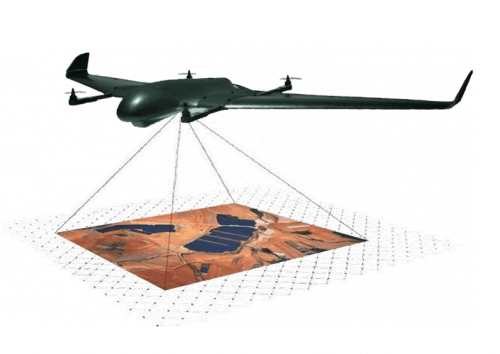

The DeltaQuad Pro #MAP VTOL mapping drone comes with a full integrated mapping mount for several types of high grade camera systems. The system is outfitted with a trigger mechanism and an easy to use removable mount compatible with the selected camera.
Asahi Dragontail glass is installed to protect the camera from dust or damage during takeoff and landing.The Ground Control Station offers state-of-the-art surveying options and can geo-reference the images in post processing. With the Emlid Reach PPK option, centimeter level accuracy can be achieved on RGB camera payloads.The toughened glass window is sunken into the bottom of the payload bay. It is shielded from sunlight or glare and does not touch the ground when landed. The glass is removable and can easily be cleaned or replaced.

Key features

✔ Fully autonomous from takeoff to landing
✔ Control, change and pause missions or redirect the vehicle to areas of interest during flight.
✔ Tool-less 1 minute field assembly
✔ No pre-flight calibrations required
✔ Covering up to 150KM / 160 minutes in a single flight
✔ DSPS Advanced safety system
✔ DeltaQuad Simulator
✔ Online mission validation & log analysis tools

Payload options

The DeltaQuad Pro #MAP is available with the following mapping payloads

Sony A7R mark IV

The Sony A7R mark IV combined with the Sonnar T 35mm lens offers 61MP resolution, fast shutter speeds and a high dynamic range. The speed of this system allows for < 1 CM/pixel resolution and this makes it our
recommended mapping sensor.

✔ 61 megapixel 9504 x 6336
✔ Full frame sensor (35.9 x 24 mm)
✔ 35 mm Focal length

Coverage map

Sony A7R mark III

The Sony A7R mark III combined with the Sonnar T 35mm lens offers 42MP resolution, fast shutter speeds and a high dynamic range. The speed of this system allows for < 1 CM/pixel resolution.

✔ 42 megapixel 7952 x 5304
✔ Full frame sensor (35.9 x 24 mm)
✔ 35 mm Focal length

Coverage map

42MP Sony Cybershot RX1R mark II

The Sony Cybershot DSC-RX1R mark II camera combined with the Carl Zeiss 35mm lens offers 42MP full frame sensor.

✔ 42 megapixel 7952 x 5304
✔ Full frame sensor (35.9 x 24 mm)
✔ 35 mm Focal length

Sony A6000

The Sony A6000 24MP sensor with 35mm lens provides an affordable, high resolution mapping sensor.

✔ 24 megapixel 6000 x 4000
✔ APS-C (23.5mm x 15.6mm)
✔ 35 mm Focal length

Micasense Rededge MX

This professional multispectral sensor kit captures 5 narrow spectral bands to analyze crop health

✔ Blue, Green, Red, Red edge, and Near-infrared
✔ Generates plant health indexes and RGB (color) images from one flight
✔ Embedded GPS for direct geo-referencing

Vehicle specifications

Dimensions:

Wingspan: 235 cm
Length: 90 cm
Height: 17 cm
Wing area: 90 sq. dm.
Payload bay: 20 x 12 x 9 cm
Flightcase dimensions: 114 x 48 x 44 cm
Flightcase weight: ~ 25 Kg including vehicle

Weight and Payload:

Empty weight: 3.3 Kg
Empty weight including battery: 5 Kg
Maximum takeoff weight: 6.2 Kg
Payload capacity: 1.2 Kg

Flight Characteristics at no payload:

Cruise speed: 18 m/s (65 Km/h)
Maximum speed: 28 m/s (100 Km/h)
Stall speed: 12 m/s (43 Km/h)
Maximum flight time:*: 2+ hours
Range through air*: 120 km

Flight Characteristics at max payload:

Cruise speed: 16 m/s (60 Km/h)
Maximum speed: 25 m/s (90 Km/h)
Stall speed: 13 m/s (47 Km/h)
Maximum flight time*: 1 hour 50 minutes
Range through air*: 100 km

Flight Characteristics with Auxiliary LiPo:

Payload capacity: 400 g
Maximum flight time*: 2 hour 45 minutes
Range through air*: 150 km

Power

Battery type: LiPo
Battery cells: 4s
Battery capacity: 23Ah

Tolerances

Maximum takeoff/landing wind **: 9 m/s (33 Km/h)
Maximum wind cruise flight **: 14 m/s (50Km/h)
Maximum precipitation: Light Rain
Operating temperature: Between -20 and +45 Celsius
Maximum flight altitude AMSL: 13.000ft (4000m)
