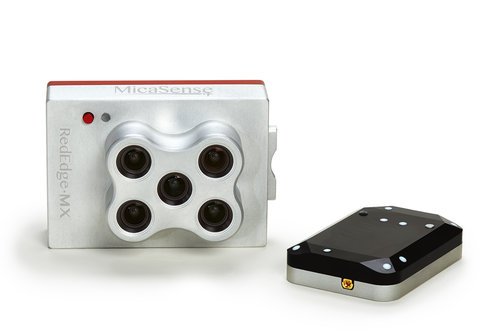

MicaSense RedEdge-MX
Multispectral Camera

The sensor that doesn’t compromiseThe RedEdge-MX is a rugged and precise multispectral camera for advanced agricultural analysis. This high-performance tool captures both the spectral bands required for crop health indices
(green, red, red edge and near-infrared), a blue band for deeper insights into specific issues, plus composite RGB imagery.
5 band & composite RGB
High-resolution
Global shutter
Radiometric Calibration
5 band & composite RGB
This high-performance multi spectral camera captures both the spectral bands required for crop health indices (green, red, re edge and near-infrared),plus a blue band for deeper insights into specific issues and composite RGB color images.
High-resolution
The RedEdge-MX features an optimized GSD of 8 cm (3.1in) per pixel.
Global shutter
The RedEdge-MX multi spectral camera features a global shutter for distortion-free image capture
Radiometric Calibration
The RedEdge-MX includes an additional lights sensor (DSL2) for highly-accurate radiometric calibration
(calibration reflectance panel included).
Specifications
Camera
Formats
sensor:
Five band multispectral sensor
Multispectral sensor:
5-band
  • Single-band resolution:
    1.2 MP, 1,280 x 960 px (4:3)
    Multispectral bands:
    Blue
    (475 nm center, 20 nm bandwidth)
    Green
    (560 nm center, 20 nm bandwidth)
    Red
    (668 nm center, 10 nm bandwidth)
    Red edge
    (717 nm center, 10 nm bandwidth)
    Near-IR
    (840 nm center, 40 nm bandwidth)
  • Single-band shutter:
    Global
  • Single-band FOV:
    HFOV: 47°
    VFOV: 37°
    DFOV: 58°
    Calibration:
    DLS 2 and included Calibrated Reflectance Panel
    Operating temperature:
    0°C-60°C
    White balance:
    Automatic
    ISO range:
    Automatic
    Support RTK/PPK:
    No

Multispectral:

TIFF

Compatible with:

ebee X
